Best Pocket Hole Jig 2026: Honest Kreg K4, 320, and 720PRO Comparison

The short answer: the Kreg 720PRO ($169) is the best pocket hole jig for anyone building furniture or cabinets regularly — its auto-adjust eliminates the depth-setting mistakes that ruin joints on cheaper models. Beginners on a budget should start with the Kreg K4 ($40); it makes identical-quality joints when set correctly.

Pocket hole joinery gets a bad reputation from traditional woodworkers who consider it a shortcut. They’re right — it is a shortcut. A well-fitted mortise and tenon is stronger and more durable. It’s also ten times slower, requires more skill, and is completely unnecessary for 90% of what most people actually build.

Face frames, cabinet boxes, furniture frames, workbenches, shelving, table aprons — pocket holes handle all of it quickly, cleanly, and with more than enough strength for the application. The joint that holds your grandmother’s kitchen cabinet together is probably a pocket hole joint. It’s held for 40 years.

The question is which jig to buy. Kreg dominates the market to the point where “pocket hole jig” and “Kreg jig” are nearly synonymous. But the Kreg lineup is confusing, and there are real differences between the models that matter for your use case.

What Pocket Hole Joinery Actually Is

A pocket hole joint is created by drilling an angled pilot hole into the face of one workpiece, then driving a coarse-thread screw through that hole into the mating piece. The “pocket” is the angled cavity that hides the screw head below the surface.

The advantages over traditional joinery:

• Fast: two boards can be joined in under two minutes, including drilling
• No clamps required during glue-up (the screw itself pulls the joint tight)
• Adjustable: the joint can be disassembled if needed, unlike glued mortise-and-tenon
• Accessible to beginners: no chisels, no hand planes, no mallet work

The limitations:

• Strength is adequate, not exceptional — fine for most furniture, not ideal for load-bearing structural joints
• Visible screw holes on finished surfaces require plugs or careful placement
• The joint’s strength depends heavily on using the correct screw (coarse thread, right length for material thickness)

The Kreg Lineup Explained

Kreg makes three main pocket hole jig models that cover the mainstream market:

Kreg K4 (~$40): The classic. A single drill guide block that you clamp to your workpiece. Manual adjustment for material thickness (you move a stepped block). No integrated clamp — you hold the workpiece with a separate clamp or by hand. Simple, reliable, has been making good pocket holes for decades.

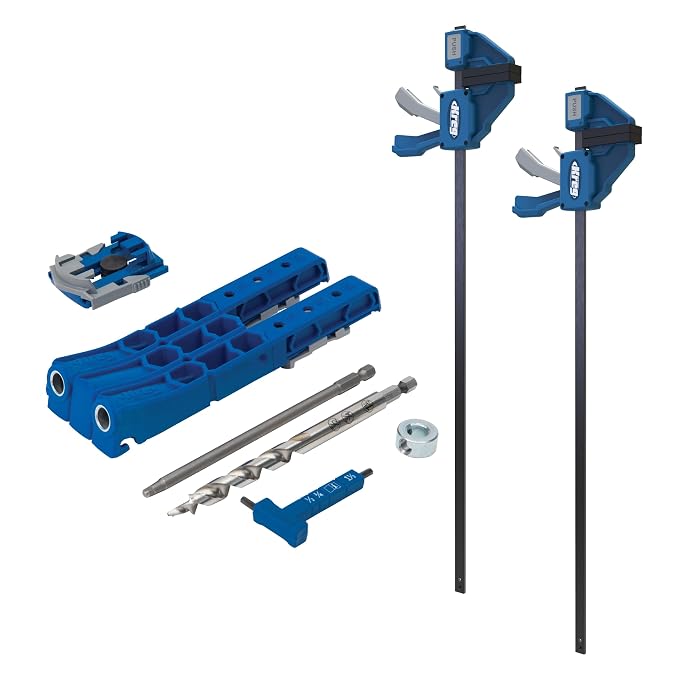

Kreg KPHJ320 (~$60): The mid-range. Adds integrated clamping — you clamp the jig and it simultaneously holds the workpiece. Slightly faster workflow than the K4 since you’re not reaching for a separate clamp every joint. Same manual thickness adjustment.

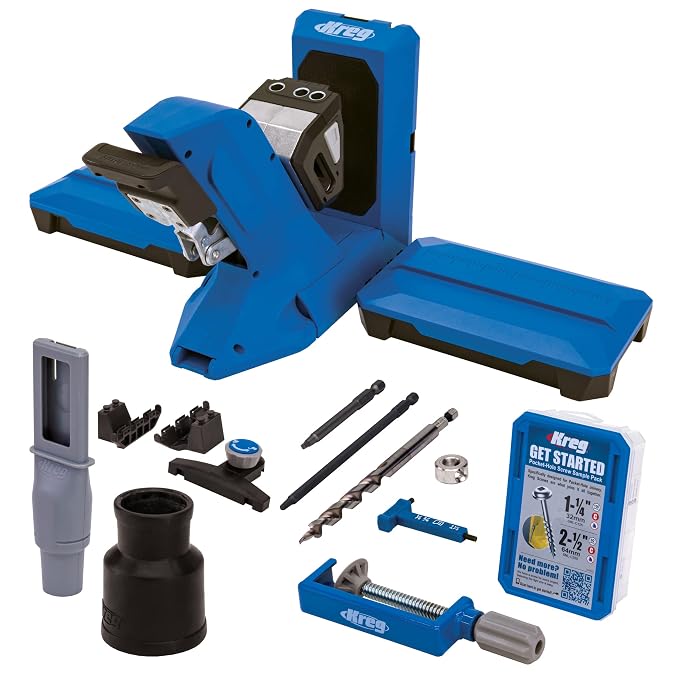

Kreg 720PRO (~$169): The professional version. Auto-adjusts for material thickness with a simple grip and set motion — you place the workpiece, squeeze the handle, and the jig configures itself. Integrated clamping. Included clamp is better quality than K4 accessories. Fastest workflow of the three.

Best Overall — Kreg 720PRO

The 720PRO’s auto-adjust feature sounds like a convenience feature. In practice, it’s an error-elimination feature.

With the K4 and 320, you manually set the depth guide for material thickness. If you’re working with mixed material thicknesses — which happens constantly when you’re building face frames with different stock sizes — you’re adjusting constantly and occasionally forgetting to adjust. A pocket hole with the wrong depth setting either strips out (too shallow) or blows through the surface (too deep).

The 720PRO auto-adjusts every time. There’s no setting to forget. For someone building cabinetry or furniture where material thickness varies, this is genuinely useful.

The integrated clamp is also better quality than what comes with the K4. It doesn’t flex as much under load, which means cleaner joints.

Who should buy the 720PRO: Anyone who builds furniture or cabinets regularly, shops with mixed-thickness stock, or anyone who’s frustrated by misadjusted jig settings on cheaper models.

Best Budget — Kreg K4

The K4 makes the same pocket holes as the 720PRO. The joint quality is identical when you set it correctly. It’s been the workhorse of this product category since Kreg introduced it, and the principle hasn’t changed because the principle is sound.

What you give up vs. the 720PRO: the auto-adjust (you do it manually with a stepped reference block), the integrated clamp quality, and some workflow speed. What you keep: the same drill bit, the same screws, the same joints.

For a beginner building their first workbench or first set of shelves, the K4 is plenty. Buy it, learn the technique, and decide later if the 720PRO’s conveniences are worth the upgrade.

The honest caveat: the K4 is better with a face-frame clamp alongside it. Budget for an extra $15–$20 for a dedicated clamp — the makeshift “hold it with your hand” approach leads to joints that shift during driving.

Best Mid-Range — Kreg KPHJ320

The 320 is the model that made sense before the 720PRO existed at its current price point. It adds the integrated clamping that the K4 lacks, which genuinely speeds up workflow — you’re clamping jig and workpiece simultaneously instead of in two steps.

Manual thickness adjustment means you still need to set the depth guide correctly. For someone working with consistent material thickness (always 3/4” sheet goods, for example), this is no hardship. For mixed-thickness work, the 720PRO’s auto-adjust remains the better choice.

Who should buy the 320: Beginners who want the workflow improvement of integrated clamping but can’t justify the 720PRO price, or anyone working primarily with consistent material thickness.

The Non-Kreg Alternative: Armor Tool Auto-Jig

The Armor Tool Auto-Jig does what the 720PRO does — auto-adjusts for material thickness — at a lower price. It’s a legitimate competitor and worth knowing about.

The build quality is slightly below the 720PRO, and Armor Tool doesn’t have Kreg’s ecosystem of compatible screws, plugs, and accessories. But the joints it makes are good, and for someone who doesn’t want to invest in the Kreg ecosystem, it’s a valid choice.

Who should consider it: Budget-conscious buyers who want the auto-adjust feature but can’t justify the 720PRO price. Anyone who isn’t already invested in Kreg accessories.

Screws, Bits & Accessories You’ll Need

Pocket holes fail most often because of wrong screws, not the jig. The screw spec matters.

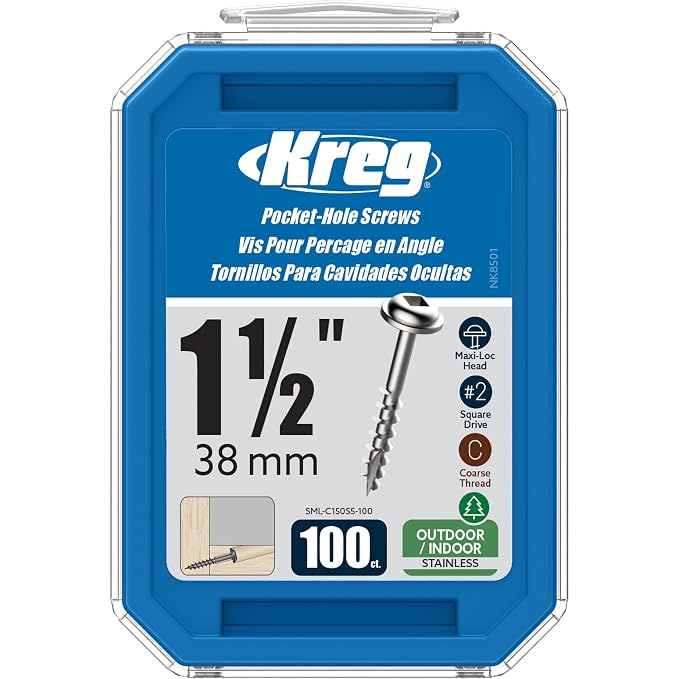

Coarse thread screws for softwood and sheet goods: Coarse thread bites into pine, plywood, and MDF. The washer head seats cleanly in the pocket. Use 1-1/4” for 1/2” material, 1-1/2” for 3/4” material. These are the most commonly used pocket screws.

Fine thread screws for hardwood: Coarse threads can split dense hardwood. Fine thread (available from Kreg) applies force more gradually.

Length matters: Too short and the screw doesn’t reach far enough into the mating piece. Too long and it pokes through the surface. Kreg’s pocket screw charts (printed on the jig and available online) specify the correct length for each material thickness.

The step drill bit: The Kreg step drill bit creates the pocket cavity and pilot hole in one pass. It’s a proprietary bit — replacements are available from Kreg and are worth keeping on hand. The bit dulls faster than you’d expect if you’re working with hardwood.

Common Mistakes

Using drywall screws in pocket holes. Drywall screws are brittle and don’t have the right thread pitch for pocket joinery. They snap under the shear load that pocket joints experience. Always use designated pocket screws.

Forgetting to adjust for material thickness. With the K4 and 320, every time you change material thickness you need to reset the depth guide. Drilling a 3/4” pocket hole into 1/2” material sends the screw through the surface. The 720PRO eliminates this problem.

No glue on structural furniture joints. The screw alone is adequate strength for many applications. For anything structural — table legs, chair frames — add wood glue to the joint face before driving the screw. The glue does the structural work long-term; the screw is the clamp.

Pocket holes where traditional joinery would be stronger. Chair rungs, mortised table legs, and any joint that sees significant racking force are better served by mortise and tenon or dowel joinery. Pocket holes are a workshop tool, not a substitute for every joint type.

Frequently Asked Questions

Q: Are pocket hole joints as strong as mortise and tenon? A: No. A glued mortise and tenon is stronger, especially under racking (lateral) loads. For most furniture applications — face frames, cabinet boxes, table aprons — pocket holes are strong enough. For chairs and structural pieces that see heavy use, traditional joinery is worth the extra effort.

Q: Do I need Kreg-brand screws or can I use generic? A: Kreg-brand screws are convenient and well-specified for their jigs. Generic coarse-thread screws with a washer head work too, as long as the length and thread type match. Don’t use drywall or standard wood screws.

Q: Can I use a pocket hole jig in hardwood? A: Yes, with the fine-thread screws and a sharp step bit. Hardwood requires more care — pre-drill carefully and don’t overtighten, as hardwood splits more readily than softwood near the pocket opening.

Q: How do I fill the pocket holes for a finished look? A: Kreg sells pre-made wood plugs in common species. You glue them in, flush them with a chisel or block plane, and sand smooth. Alternatively, place pocket holes on surfaces that won’t be visible — inside faces, undersides of shelves, back panels.

Q: Is the Kreg K4 worth buying if I already own the 320? A: No. If you have the 320, the K4 is a downgrade. If you have the K4, consider the 720PRO as the meaningful upgrade.
